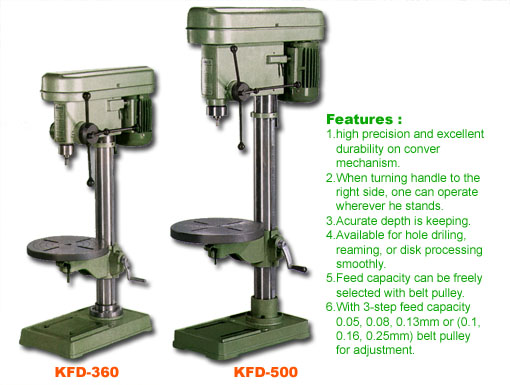

TYPE KFD-360 KSD-420
Center Of Spindle To Column 165mm 220mm
Drilling Capacity 13mm 25mm
Spindle Travel 80mm 125mm
Spindle Taper J. T. No.6 M. T. No.3
Max, Distance Spindle To Table 430mm 600mm
Max, Distance Spindle To Base 640mm 930mm
Table Area 320mm 425mm
Base Area 305 x 500mm 350 x 595mm
Dia Of Column 80mm 102mm
No. Of Speed Step 4 9
Spindle Speeds R.P.M 50 Hz 450~2500 160~1730
60 Hz 550~3000 200~2100
Power Feeds mm/rev A Type 0.1               0.16              0.25
B Type 0.05              0.08              0.13
Motor 1 Hp 4P 6 Hp 4P
Machine Height 1080mm 1560mm
Machine Weight 92 kg 217 kg

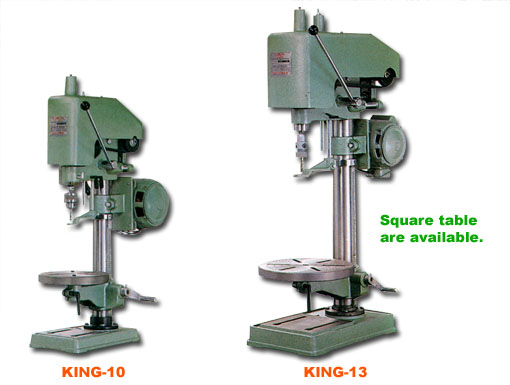

TYPE KING-10 KING-13
Center Of Spindle To Column 125mm 175mm
Tapping Capacity 1~10mm 4~13mm
Max, Distance Spindle To Table 300mm 480mm
Max, Distance Spindle To Base 450mm 650mm
Spindle Travel 40mm 50mm
Taper Of Spindle Nose J. T. No.2 J. T. No.6
Surface Of Table 250mm 300mm
Spindle Speeds 50 Hz 700, 920 350, 520, 680
60 Hz 850, 1100 420, 620, 820
Motor 1/4 Hp 4P 1/2 Hp 4P
Machine Height 900mm 1210mm
Machine Weight 46 kg 96 kg
